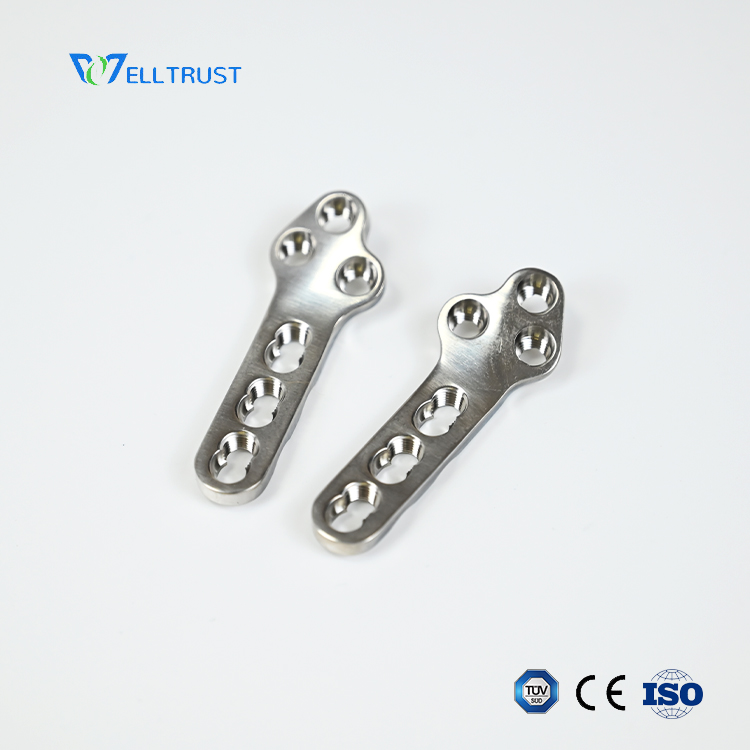

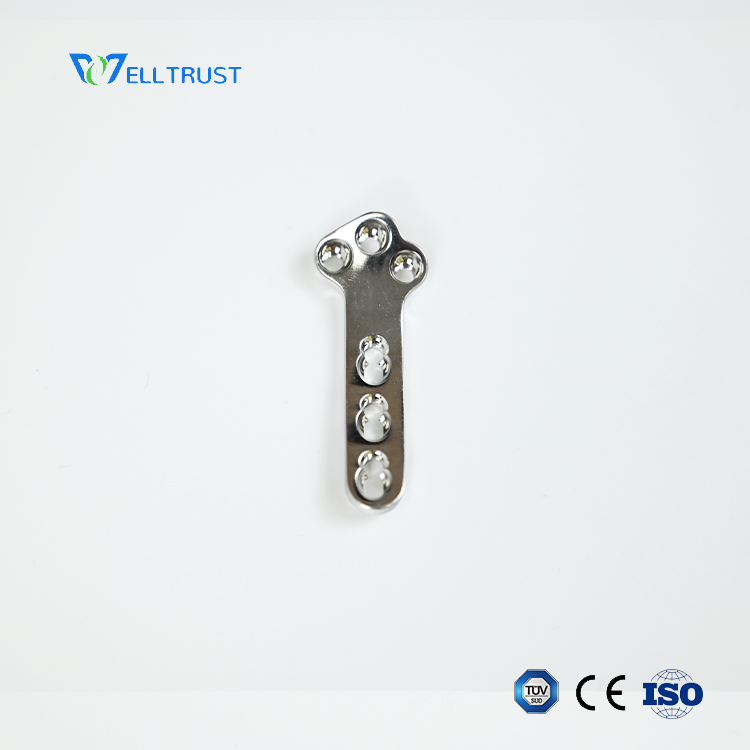

The Veterinary TPLO Plate is an orthopedic bone plate designed for tibial plateau leveling osteotomy (TPLO) procedures in veterinary orthopedic surgery.

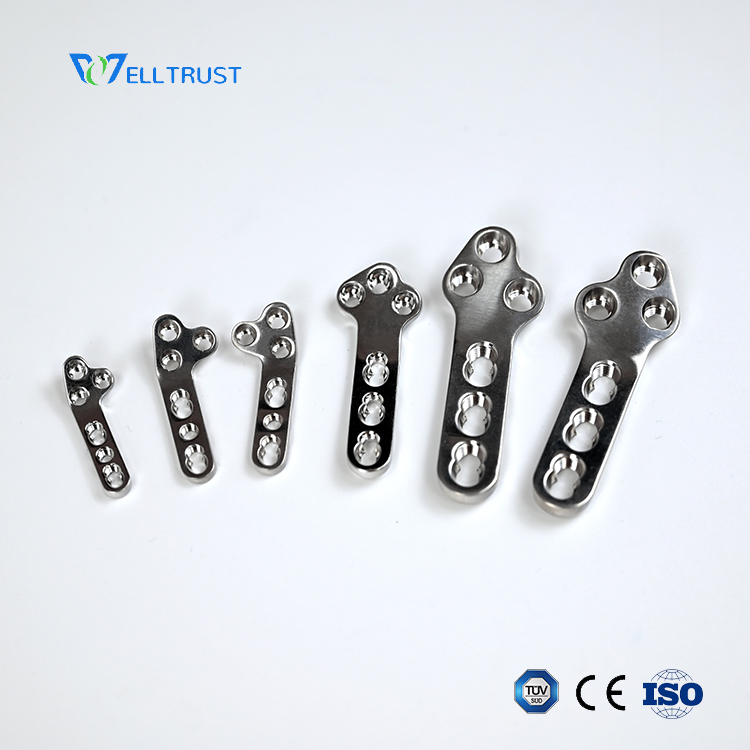

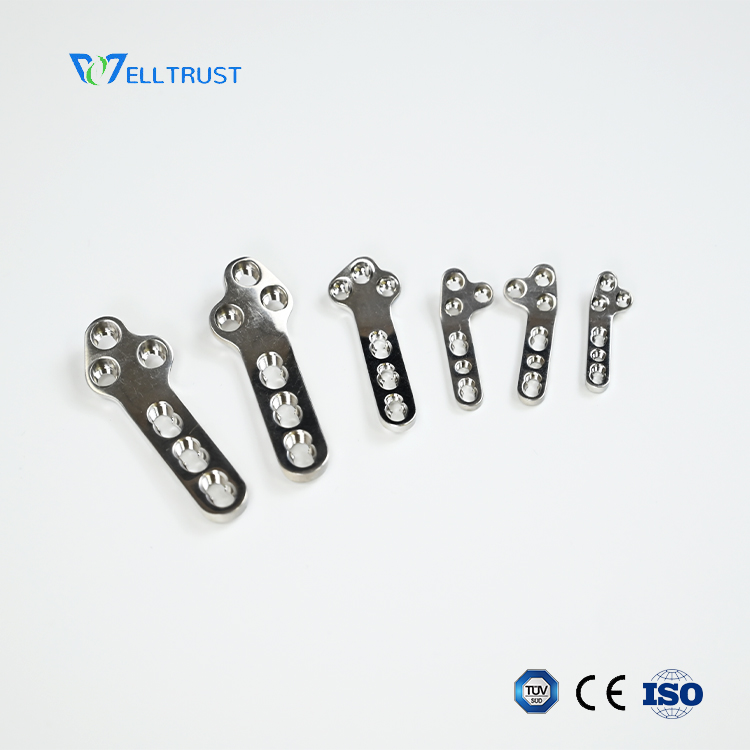

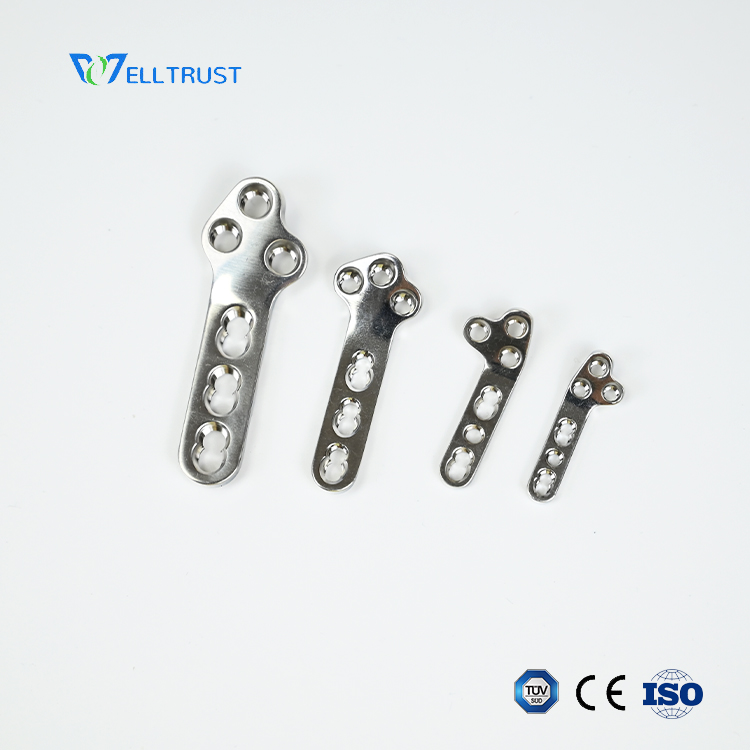

The product series includes four size options: 2.0, 2.4, 2.7 and 3.5, with corresponding left and right configurations. This allows veterinary surgeons and distributors to select the appropriate plate configuration according to the surgical requirements.
Each plate size is designed for use with its corresponding cone guide, providing a matched configuration for the associated TPLO instrumentation.
| Plate Size | Configuration | Specification | Compatible Cone Guide |
|---|---|---|---|
| TPLO 2.0 Plate | 3+3 Hole Left | 2.3 × 5.5 × 30 | 2.0 cone guide |
| TPLO 2.0 Plate | 3+3 Hole Right | 2.3 × 5.5 × 30 | 2.0 cone guide |
| TPLO 2.4 Plate | 3+3 Hole Left | 2.3 × 6.5 × 35 | 2.4 cone guide |
| TPLO 2.4 Plate | 3+3 Hole Right | 2.3 × 6.5 × 35 | 2.4 cone guide |
| TPLO 2.7 Plate | 3+3 Hole Left | 2.6 × 8.5 × 46 | 2.7 cone guide |
| TPLO 2.7 Plate | 3+3 Hole Right | 2.6 × 8.5 × 46 | 2.7 cone guide |
| TPLO 3.5 Plate | 3+3 Hole Left | 3.6 × 11.5 × 58 | 3.5 cone guide |
| TPLO 3.5 Plate | 3+3 Hole Right | 3.6 × 11.5 × 58 | 3.5 cone guide |
The Veterinary TPLO Plate is designed for use in tibial plateau leveling osteotomy (TPLO) procedures as part of veterinary orthopedic fracture and joint stabilization workflows.
The available size and side configurations allow selection based on:
The appropriate plate size and corresponding instrumentation should be selected by qualified veterinary professionals according to the intended procedure.
A Veterinary TPLO Plate is an orthopedic bone plate designed for tibial plateau leveling osteotomy (TPLO) procedures in veterinary orthopedic surgery.
The product series includes 2.0, 2.4, 2.7 and 3.5 size options.
Yes. Each TPLO plate size shown in this series is available in Left and Right configurations.
The corresponding cone guide should match the plate size: 2.0 plate with 2.0 cone guide, 2.4 with 2.4, 2.7 with 2.7, and 3.5 with 3.5.
