Veterinary MIPO Distractor Instrument Set

The Veterinary MIPO Distractor Instrument Set supports selected minimally invasive plate osteosynthesis workflows in animal fracture surgery. It combines K-wires, distraction sleeves and handling instruments to help the veterinary orthopedic team prepare temporary fixation, maintain working alignment and support plate-positioning steps during fracture reduction.

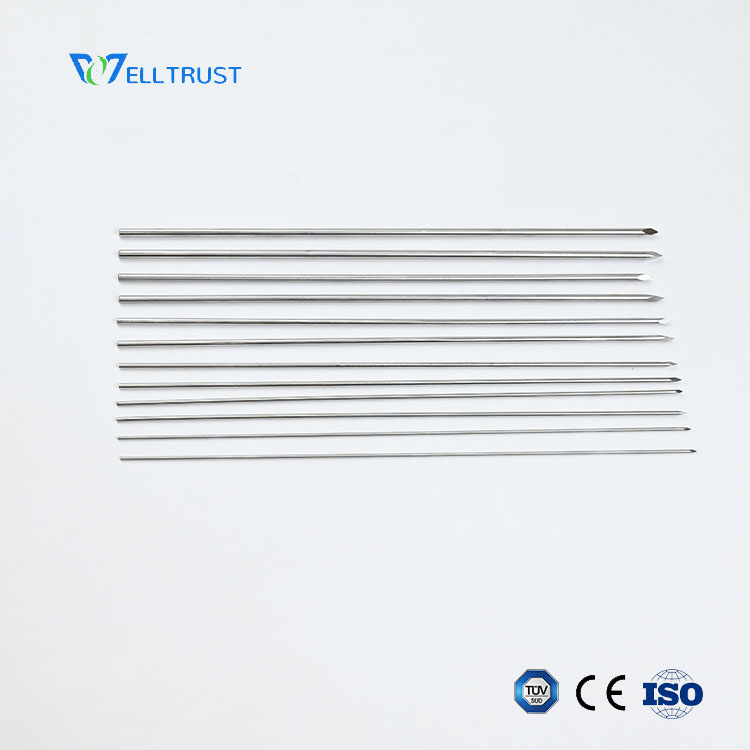

The set includes sharp single-ended Kirschner wires in six diameters: Ø1.5 mm, Ø2.0 mm, Ø2.5 mm, Ø3.0 mm, Ø3.5 mm and Ø4.0 mm. Each wire has a 250 mm length, with two pieces supplied for each diameter.

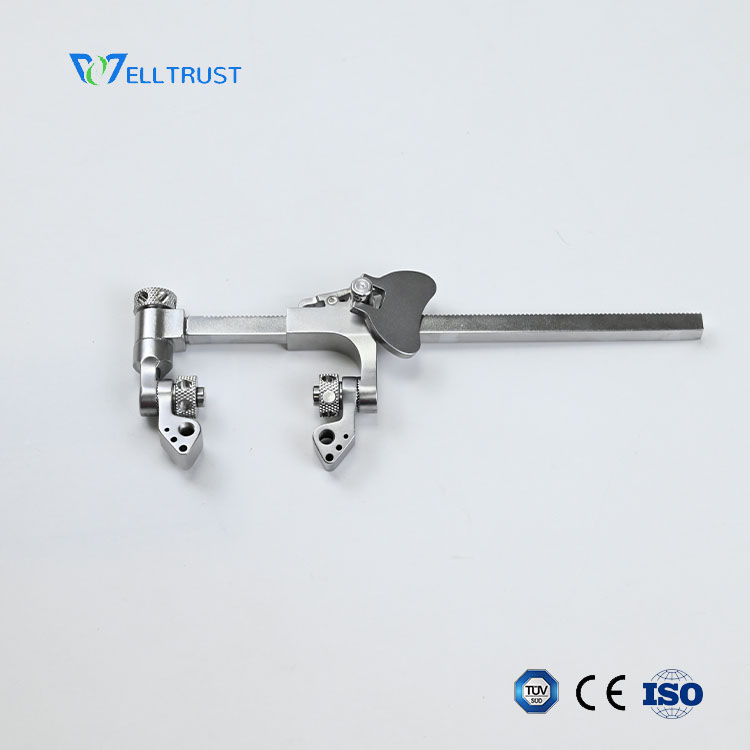

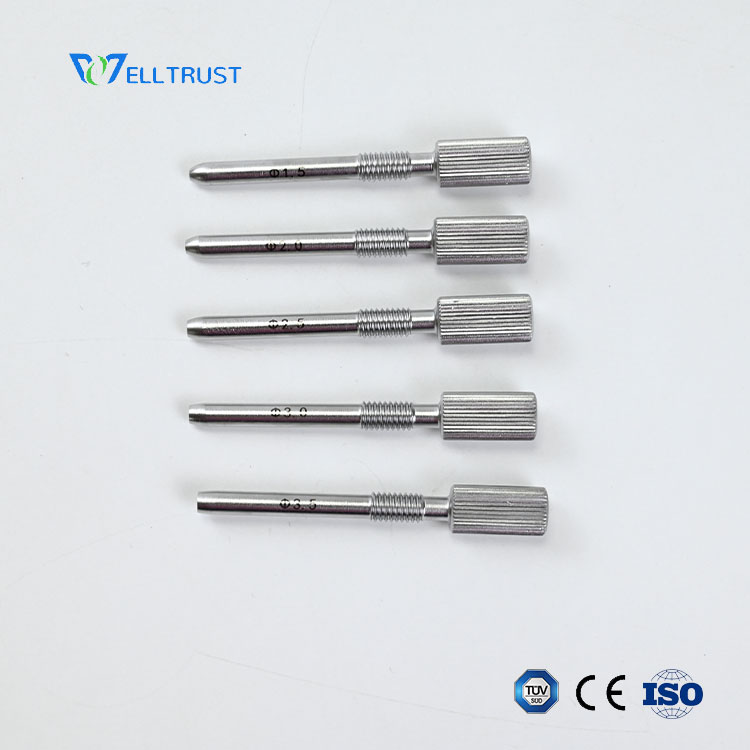

Five distraction sleeve sizes are included: Ø1.5 mm, Ø2.0 mm, Ø2.5 mm, Ø3.0 mm and Ø3.5 mm. The multifunctional ankle K-wire instrument and wrench support K-wire handling and distraction-related instrument preparation.

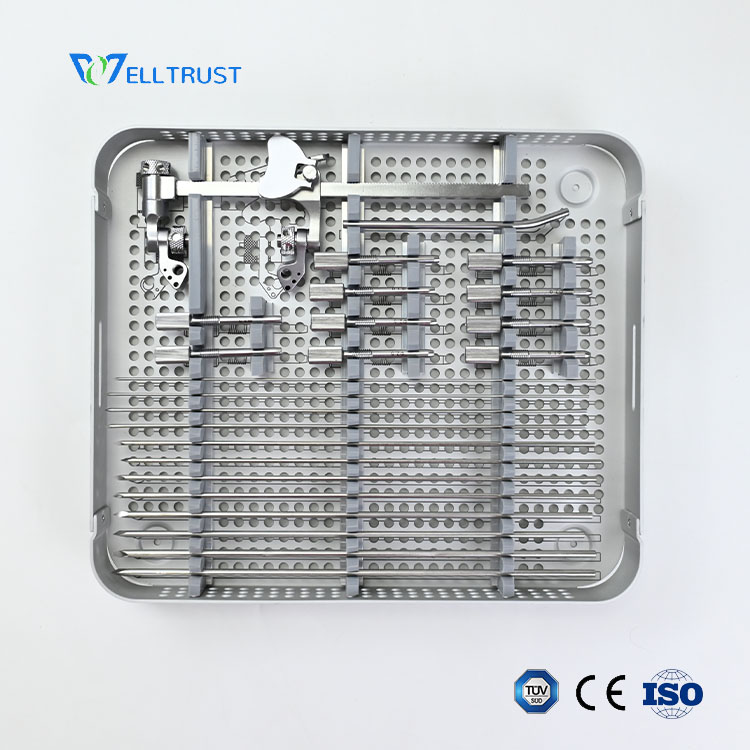

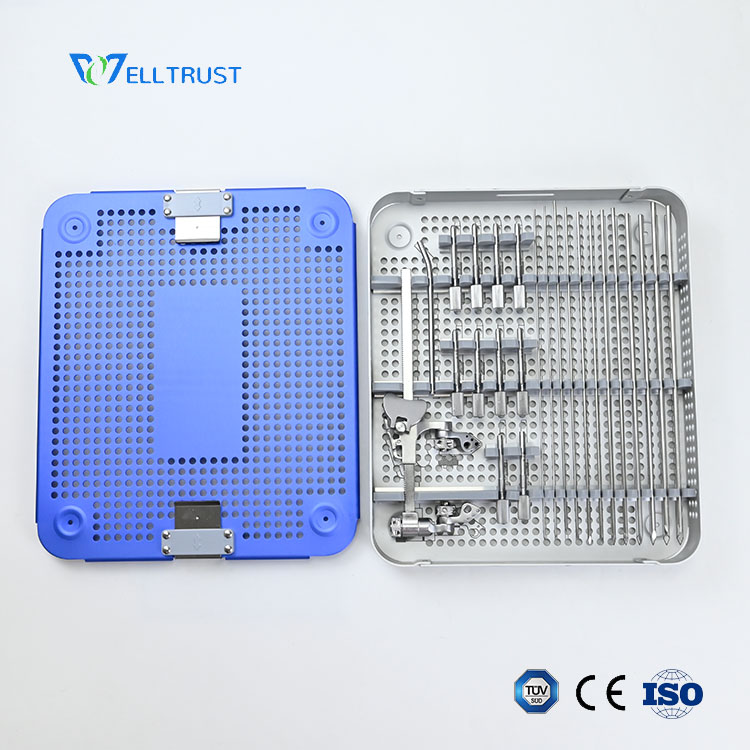

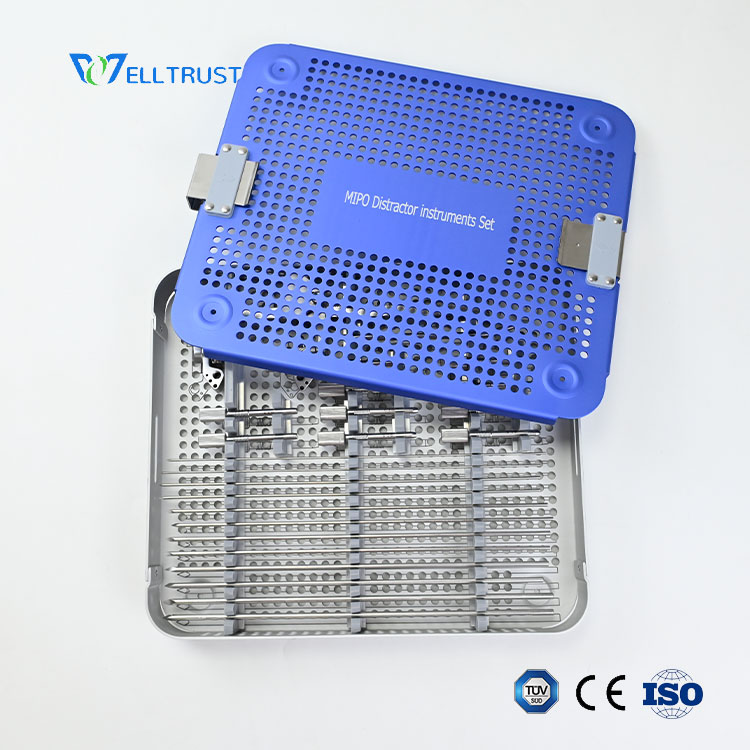

The components are organized in a 285 × 245 × 35 mm sterilization box. The set is suitable for veterinary orthopedic hospitals, referral clinics, distributors and surgical teams preparing instruments for selected fracture reduction and plate fixation procedures.

Well Trust Vet supplies veterinary orthopedic implants, fracture fixation instruments, surgical power tools, external fixation products and related equipment. Our team supports product selection, instrument-set planning, quotation coordination and related veterinary orthopedic supply.

Configuration summary

• Sharp single-ended K-wire: Ø1.5 × 250 mm, quantity 2
• Sharp single-ended K-wire: Ø2.0 × 250 mm, quantity 2
• Sharp single-ended K-wire: Ø2.5 × 250 mm, quantity 2
• Sharp single-ended K-wire: Ø3.0 × 250 mm, quantity 2
• Sharp single-ended K-wire: Ø3.5 × 250 mm, quantity 2
• Sharp single-ended K-wire: Ø4.0 × 250 mm, quantity 2
• Multifunctional ankle K-wire instrument: quantity 1
• Wrench: quantity 1
• Distraction sleeves: Ø1.5 mm, Ø2.0 mm, Ø2.5 mm, Ø3.0 mm and Ø3.5 mm, quantity 2 for each size
• Sterilization box: 285 × 245 × 35 mm, quantity 1

Frequently Asked Questions

1. What is the Veterinary MIPO Distractor Instrument Set used for?

It supports selected veterinary fracture reduction and minimally invasive plate osteosynthesis workflows involving temporary K-wire fixation, controlled distraction and plate-positioning preparation.

2. Which K-wire sizes are included?

The set includes sharp single-ended K-wires in Ø1.5 mm, Ø2.0 mm, Ø2.5 mm, Ø3.0 mm, Ø3.5 mm and Ø4.0 mm diameters. Each wire is 250 mm long, with two pieces supplied for each size.

3. Which distraction sleeve sizes are included?

The distraction sleeve options are Ø1.5 mm, Ø2.0 mm, Ø2.5 mm, Ø3.0 mm and Ø3.5 mm, with two sleeves supplied for each diameter.

4. What is included besides the K-wires and sleeves?

The configuration includes one multifunctional ankle K-wire instrument, one wrench and one 285 × 245 × 35 mm sterilization box.

5. Can Well Trust Vet support a complete fracture-fixation configuration?

Yes. Well Trust Vet can support selection and quotation for related veterinary plates, screws, orthopedic instruments, power tools and fixation accessories according to the planned procedure.
