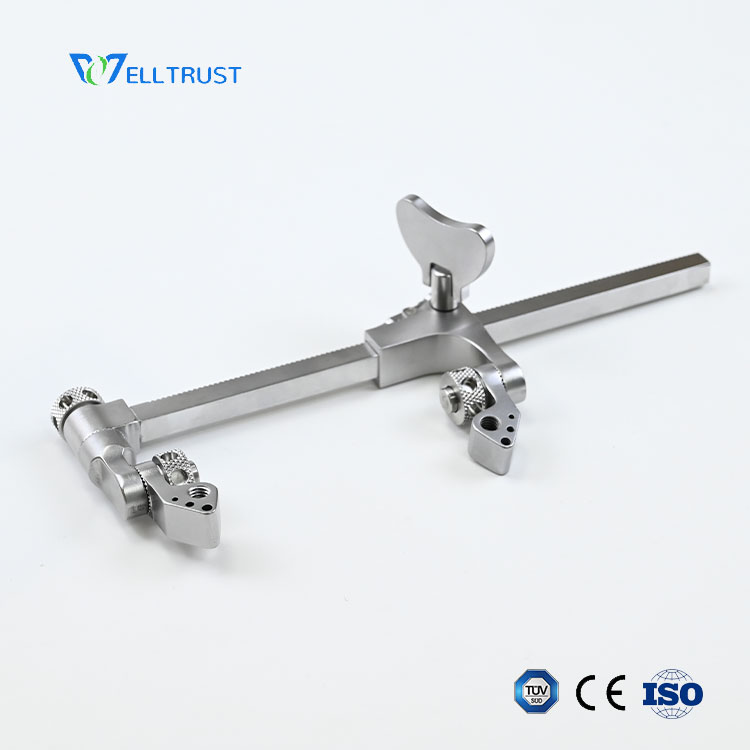

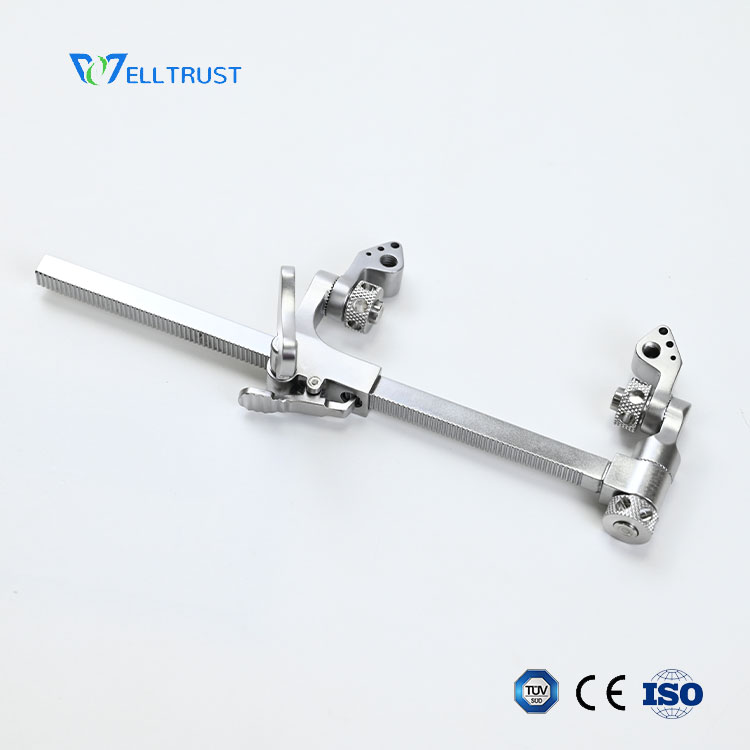

The MIO 29017 kit is designed to support selected veterinary minimally invasive orthopedic reduction and plate-positioning procedures. Its main component is a multifunctional K-wire distractor that helps the surgical team apply controlled distraction or compression while maintaining working alignment during fracture management.
The distractor has an open-size range of 1–20 cm and supports left-right rotation, up-down rotation, distraction and compression. Replaceable sleeves allow the instrument to be configured for different K-wire diameters.

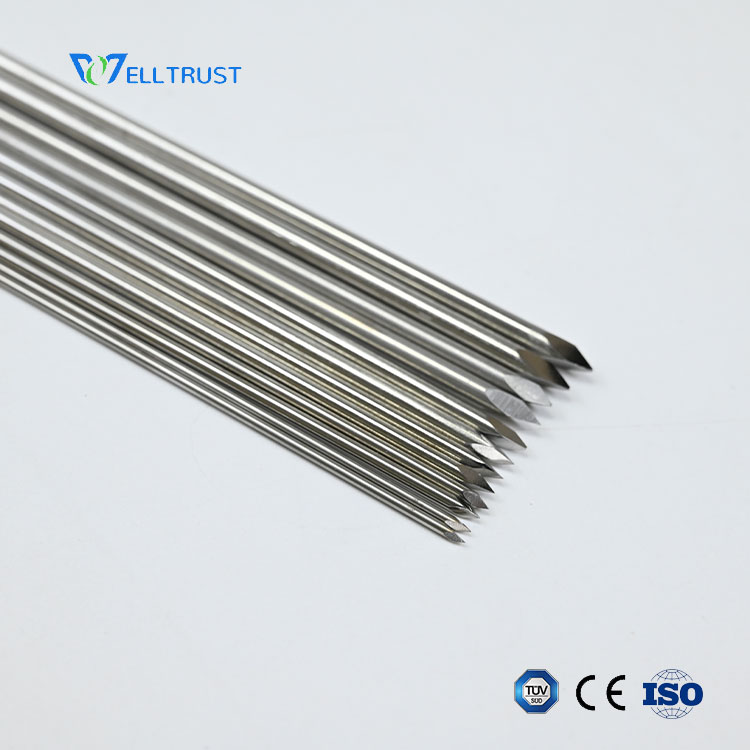

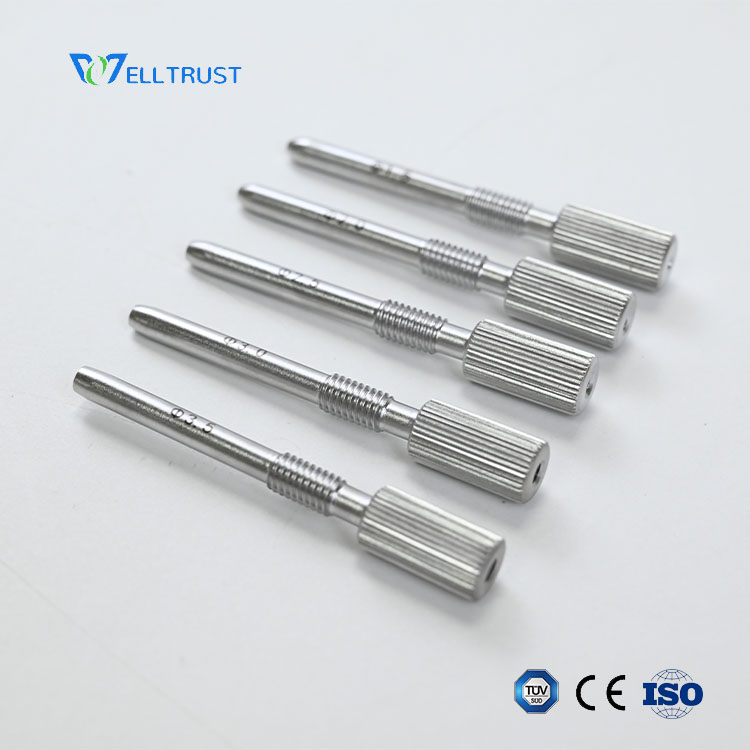

The kit includes Ø1.5 mm, Ø2.0 mm, Ø2.5 mm, Ø3.0 mm and Ø3.5 mm distraction sleeves, together with 250 mm sharp K-wires in Ø1.5 mm, Ø2.0 mm, Ø2.5 mm, Ø3.0 mm, Ø3.5 mm and Ø4.0 mm sizes. Two K-wires are supplied for each listed diameter, and two sleeves are supplied for each sleeve size.

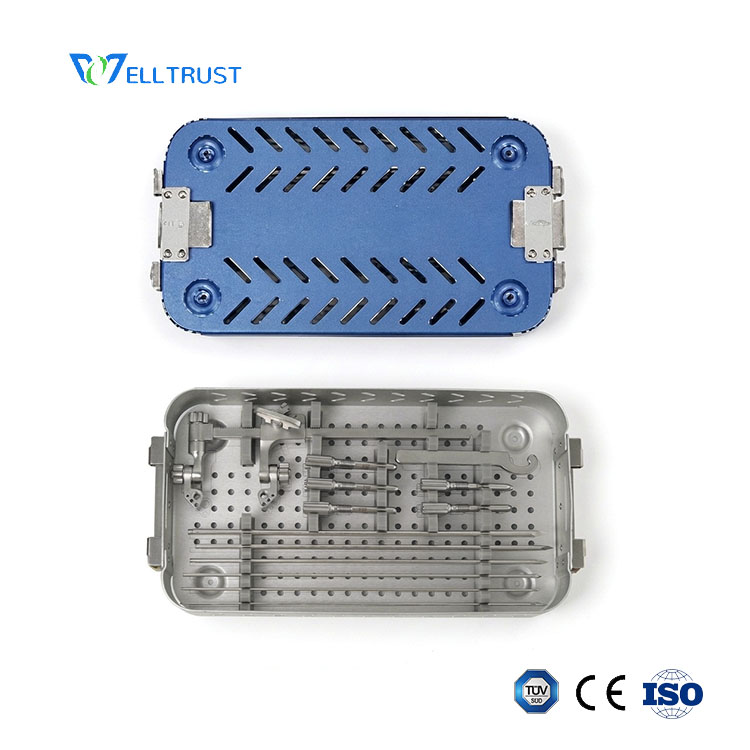

The MIO 29017 configuration also includes a self-locking wrench and an instrument case. It can support veterinary orthopedic teams preparing for fracture reduction, minimally invasive plate osteosynthesis and related bone alignment procedures.
Well Trust Vet supplies veterinary orthopedic implants, fracture fixation instruments, MIO/MIPO instruments, surgical power tools and related equipment. Our team supports instrument selection, procedure-based configuration, quotation coordination and complete veterinary orthopedic supply.
1. What is the MIO 29017 kit used for?
It supports selected veterinary fracture reduction and minimally invasive orthopedic workflows that require controlled distraction, compression or temporary K-wire-based positioning.
2. What is the open-size range of the multifunctional distractor?
The illustrated multifunctional distractor has an open-size range of 1–20 cm.
3. Which movements can the distractor provide?
The distractor supports distraction, compression, left-right rotation and up-down rotation for controlled reduction and positioning.
4. Which K-wires and sleeves are included?
The kit includes 250 mm K-wires from Ø1.5 mm to Ø4.0 mm and replaceable distraction sleeves from Ø1.5 mm to Ø3.5 mm, with two pieces of each listed size.
5. Can Well Trust Vet supply related fixation products?
Yes. Well Trust Vet can coordinate related plates, screws, K-wires, orthopedic instruments and surgical power tools according to the planned veterinary procedure.
