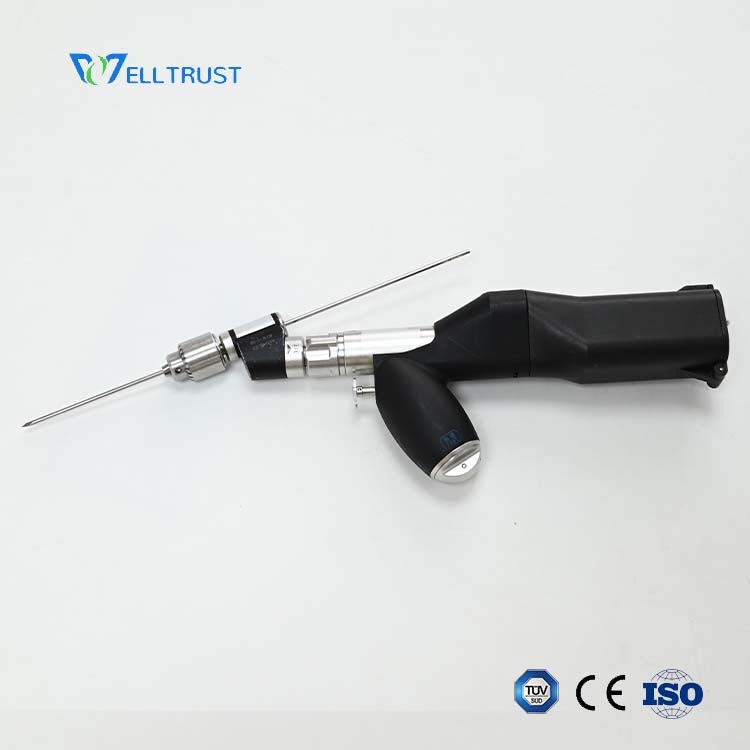

BP100 Multi-function Pen Drill for Veterinary Orthopedic

BP100 Multi-function Pen Drill for Veterinary Orthopedic and Surgical Procedures

The BP100 Multi-function Pen Drill is a modular veterinary surgical power tool designed to provide several operating functions in a pen-style handpiece configuration. The supplied product information lists high-speed drilling, reciprocating sawing, neuro burrs, screwdriver functions, a drill handpiece, an oscillating saw and a single-trigger modular handpiece.

In veterinary orthopedic workflows, different stages of a procedure may require controlled drilling, bone cutting, screw placement or specialized burr work. BP100 is intended to help veterinary professionals select a suitable attachment and operating function for the planned procedure, subject to the compatible attachment configuration and the instructions in the current technical documentation.

The listed high-speed drill range is 0-30,000 rpm, and the neuro burr range is also listed as 0-30,000 rpm. The drill handpiece is listed at 0-1,500 rpm. For bone-cutting functions, the reciprocating saw range is listed as 0-12,500 cpm and the oscillating saw range as 0-25,000 cpm. The image also lists two screwdriver settings: 0-250 rpm with 0.4 Nm and 0-400 rpm with 1 Nm.

The pen-style format can be considered for veterinary orthopedic procedures involving small-bone work, drilling, cutting, screw-related steps and selected burr applications. The actual application depends on the selected attachment, the surgical site, the animal patient, the planned technique and the responsible veterinary professional's evaluation. The product image does not confirm a specific animal species, attachment interface, burr size or saw-blade specification.

Well Trust Vet supplies veterinary surgical equipment, veterinary orthopedic implants, general surgical instruments, external fixation products and sports medicine equipment for professional animal healthcare customers. Our team can support product selection, attachment and workflow discussions, quotation preparation and communication about related veterinary equipment. For BP100, customers should provide the intended procedure, required functions and preferred attachment configuration so that the applicable product details can be reviewed before ordering.

Before clinical use, users should confirm the handpiece, attachment and accessory configuration, inspect the equipment, follow the manufacturer's operating instructions and use only the validated cleaning, disinfection and sterilization method. No sterilization, battery, motor, material or compatibility claim should be added without confirmation from the current technical file.

Confirmed function ranges

• High-speed drill: 0-30,000 rpm
• Reciprocating saw: 0-12,500 cpm
• Neuro burrs: 0-30,000 rpm
• Screwdriver: 0-250 rpm, 0.4 Nm
• Screwdriver: 0-400 rpm, 1 Nm
• Drill handpiece: 0-1,500 rpm
• Oscillating saw: 0-25,000 cpm
• Single-trigger modular handpiece: 0-30,000 rpm

Frequently Asked Questions

1. What is the BP100 Multi-function Pen Drill?

BP100 is a pen-style modular veterinary surgical power tool that combines several listed functions, including drilling, sawing, neuro burr operation and screwdriver operation.

2. What veterinary procedures can BP100 support?

It can be considered for selected veterinary orthopedic and surgical workflows that require drilling, bone cutting, screw-related steps or compatible burr applications. The responsible veterinary professional must confirm suitability for the patient and procedure.

3. What is the maximum listed high-speed drill range?

The high-speed drill range is 0-30,000 rpm, and the neuro burr function is also 0-30,000 rpm.

4. What are the listed saw parameters?

The reciprocating saw is listed at 0-12,500 cpm, and the oscillating saw is listed at 0-25,000 cpm.

5. Does BP100 include all attachments as standard?

BP100 supports multiple handpiece and attachment configurations for drilling, sawing, burr and screwdriver workflows. WTT Vet can support attachment selection and quotation coordination.

6. Can Well Trust Vet help with product selection?

Yes. Well Trust Vet can discuss the intended veterinary procedure, required power functions and attachment configuration, and provide product and quotation support.

7. Is BP100 sterilizable?

Clean, inspect and process the handpiece and attachments according to the manufacturer's instructions and the applicable instrument-processing protocol.
